A mere 17 months after the Ekofisk discovery was announced in December 1969, Gulftide was ready to come on stream as a temporary production platform.

Its official inauguration took place on 9 June, with initial test output commencing on 15 June. Full production began on 8 July.

The rig was chosen because it was available on the market. Established equipment for processing oil and gas was tailored to the limited space on board. Separate flowlines carried wellstreams from four subsea wells. Oil, gas and water were separated on board, with the gas flared and the oil piped to two buoys for loading into shuttle tankers.

Work on the process equipment was relatively simple. The problem was to tailor it to the rig. The subsea wellheads had to be reinforced to meet the demands posed by the North Sea, and a buoy loading system needed to be developed for waters where this technology had never been used before.

To gain time, it was decided that the three appraisal wells drilled by Ocean Viking to map the extent of the field – in addition to the discovery well – would be completed for production.

Første testflamme tent på Ekofisk. På Gulftide

1973, Teddy Broadhurst, gulftide,

arbeidsliv, hjelpearbeider

Gulftide, separator – på bildet kan man se at det er fire brønner.

arbeidsliv, gulftide, pionerkultur, arbeid, dekk, Norges første havbunnsbrønner, historie, 1971,

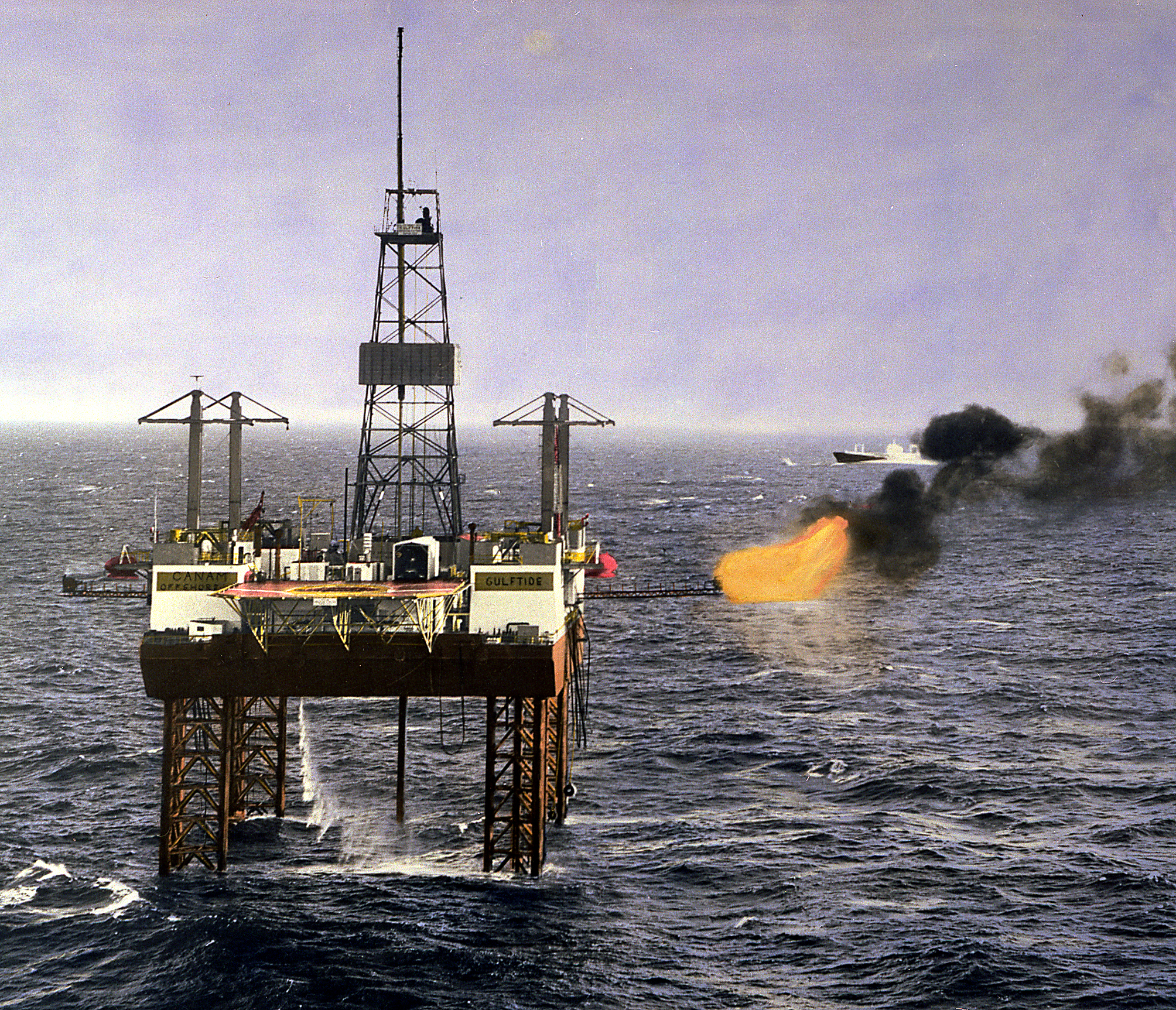

gulftide,

The producers would be topped with hydraulically controlled wellheads. Such equipment had been tried out on the seabed earlier, but on a limited scale and not in the deep and rough waters found on Ekofisk. This challenge was overcome by having the wellheads manufactured and then reinforced at the Phillips base in Dusavik outside Stavanger. Flowlines and control cables would also be laid from each well to Gulftide, with production comingled in a single riser to the topsides.

Weather conditions also represented a major problem when designing the loading buoys. Phillips itself had experience with such facilities, but the concept had only been used before in harbour-like conditions and waters no deeper than 27 metres. They were now to stand in 70 metres in the middle of the North Sea.

Gulftide was converted in the Åmøy Fjord outside Stavanger to cope with conditions on Ekofisk. The processing facilities were installed and reinforcements made to the derrick, helideck, hangar and leg structures.

Planning began in late 1970, when Phillips received approval to begin laying the flowlines between wellheads and rig. Brown & Root won this contract, with the first oil pipelines on the Norwegian continental shelf laid by the Hugh W Gordon laybarge.

The production principle on Gulftide was relatively simple. Output flowed from the subsea wellheads to the rig, where it passed through two separation levels to be split into oil and gas while the huge pressure was reduced.

Gas was flared off and the oil was piped to one of the loading buoys where a shuttle tanker was moored. Production could only take place when a ship was present.

As soon as one tanker had become fully laden, the oil flow was switched to the other buoy where another ship was waiting to take on cargo.

The problem with this approach arose when weather conditions meant the tankers had to cast off from the buoys because of strong winds or high waves. The rig then had to shut down production from the wellheads immediately.

Given the weather conditions found on Ekofisk, output regularly had to cease. Production was suspended for 20 per cent of the first year for this reason.

Output began cautiously on 8 July 1971 from a single well. The second producer came on stream that September, the third was ready the following month and all four were producing by February 1972. They each flowed 10 000 barrels of oil per day.

Source: Kvendseth, Stig, Giant discovery, 1988.

Different systems for rotating personnel between work and leisure functioned in parallel on the drilling rigs during the early years of oil exploration in the Norwegian North Sea. The most common practice was nevertheless one week on and one off. To get a holiday, people carried on working offshore until they were entitled to three weeks free in one go.

However, this arrangement proved impractical – particularly for workers who going offshore or returning home on a Saturday or Sunday. They never got a full weekend off. To stagger such change-overs, the schedule was extended to eight days offshore with eight days free. One work period in five was also dropped, so every fifth free spell was 24 days long.[REMOVE]Fotnote: This gave a working time which averaged 38 hours per week and 1 824 hours per year after holidays. That corresponded to shift work on land.

When Norway’s Working Environment Act (WEA) came into force in 1977, the permitted length of a continuous shift on land was cut. But there was no assurance that this would be applied offshore. In its original form, the Act did not permit the 12-hour working day normal on all offshore installations. So amendments were needed to adapt the legal provisions to fixed platforms.[REMOVE]Fotnote: The Act specified that working time was 36 hours over seven days for work carried out around the clock throughout the week. That represented 1 877 hours a year on average. Adjusting this for four weeks of holiday gave a net working time of 1 733 hours.

The Norwegian Petroleum Directorate argued that reducing working time offshore was impractical, with the “special character” of the oil industry requiring exemptions.[REMOVE]Fotnote: Ryggvik, H, 1999, “Fra forbilde til sikkerhetssystem i forvitring: Fremveksten av et norsk sikkerhetsregime i lys av utviklingen på britisk sokkel”, Working Paper, Volume 114, Centre for Technology and Culture, University of Oslo, printed edition. Oslo: Centre for Technology, Innovation and Culture (TIK), University of Oslo: 16. As early as 1975, however, Ekofisk operator Phillips Petroleum had agreed to working hours for its own personnel which accorded with the provisions proposed for the new Act. A royal decree of 9 July 1976 extended the existing Worker Protection Act, with certain exceptions, to the fixed installations offshore on a temporary basis.

The WEA was then applied to these facility in 1977.[REMOVE]Fotnote: Ryggvik, H, 1999, “Fra forbilde til sikkerhetssystem i forvitring: Fremveksten av et norsk sikkerhetsregime i lys av utviklingen på britisk sokkel”, Working Paper, Volume 114, Centre for Technology and Culture, University of Oslo, printed edition. Oslo: Centre for Technology, Innovation and Culture (TIK), University of Oslo: 18. This meant that offshore workers had their working time regulated and acquired legal safeguards against unfair dismissal. After long discussions, the North Sea schedule was by and large established as two weeks working offshore and three weeks free on land.

But the WEA was not applied to floating units such as rigs, and working time in that part of the oil industry continued to be regulated by Norway’s Ship Labour Act.

 An extra day

Norway’s legislation on paid holidays was amended in 1981 to give everyone a legal right to four weeks and one day off. The latter was nicknamed the “Gro Day” after Gro Harlem Brundtland, the Labour premier of the day. This meant the two weeks on/three weeks off schedule now imposed too many working hours. It was decided that the extra would be compensated as 25 hours of overtime per year.[REMOVE]Fotnote: Working time was reduced from 1 752 to 1 727 hours.

Agreement was reached in the 1986 collective pay negotiations on a 7.5-hour normal working day and a 37.5-hour week. Personnel both on land and offshore working a continuous shift also had their weekly hours cut 33.6.[REMOVE]Fotnote: Net working hours after deducting holidays were reduced from 1 752 to 1 727. To comply with these new terms, the offshore schedule was altered to two weeks at work, three weeks ashore, two weeks at work and four weeks on land.

When the Gro Day was introduced in 1981, the Labour government originally proposed introducing a full week’s extra holiday in stages over three years. But that failed to materialise. In 2000, the Norwegian Confederation of Trade Unions (LO) proposed a fifth holiday week for all employees, which would thereby reduce the number of hours in a work-year.[REMOVE]Fotnote: That involved an additional four free days of 7.5 hours offshore (32 hours). The hours to be worked were then reduced from 1 612 to 1 580. That demand was accepted, and most workers could thereby enjoy five weeks off. This naturally had consequences offshore, but implementing it there was not a straightforward matter.

A schedule of two weeks at work and three/four weeks at home had been 19 hours short of a normal work-year. That was overcome by deducting this time from pay or leaving the first 11 hours of overtime unpaid.[REMOVE]Fotnote: Sande, Leif, “Arbeidstiden på sokkelen”, Sysla – meninger, 11 March 2015.

The new holiday deal meant that an offshore worker would be doing 12 extra hours per year. This was initially paid as overtime, which the unions found unsatisfactory. They demanded the full holiday entitlement awarded to everyone else through the introduction of a schedule of two weeks on and four off. In 2002, the Norwegian Oil Industry Association (OLF – today the Norwegian Oil and Gas Association) allowed local deals under the offshore agreements to adopt this two-four scheme. All the companies subject to these agreements introduced the new schedule. ConocoPhillips was among the operators to do this, in its case covering the Greater Ekofisk Area.

However, the two-four system meant workers were falling short of a work-year by 122 hours.[REMOVE]Fotnote: Working 12 hours a day for 14 days, followed by four weeks off, means that an employee works 168 hours every six-week period. That adds up to 1 460 hours per year. Annual pay was thereby cut by 7.71 per cent to take account of the reduced time worked.[REMOVE]Fotnote: Norwegian Official Reports (NOU) 2016:1, Arbeidstidsutvalget — Regulering av arbeidstid – vern og fleksibilitet. https://www.regjeringen.no/no/dokumenter/nou-2016-1/id2467468/sec16. Other conditions were also set on Ekofisk. The whole offshore organisation was to be reviewed to find efficiency gains, and the agreement specified that the change would not lead to an increase in the workforce.[REMOVE]Fotnote: Pioner, “2-4-ordningen innføres”, March 2003.
